The best fish tank filter placement is the arrangement that moves water around your actual layout while leaving fish room to rest. A strong stream at one end does not tell you what is happening behind a rock or at the far corner. Start with your filter's installation instructions, then check the circulation you can observe.
This guide covers adjustable returns and intakes on freshwater canister and internal filters. Hang-on-back units have more limited positioning, while sump overflows and return plumbing need their own design checks. There is no single inlet-to-outlet distance that suits every aquarium.

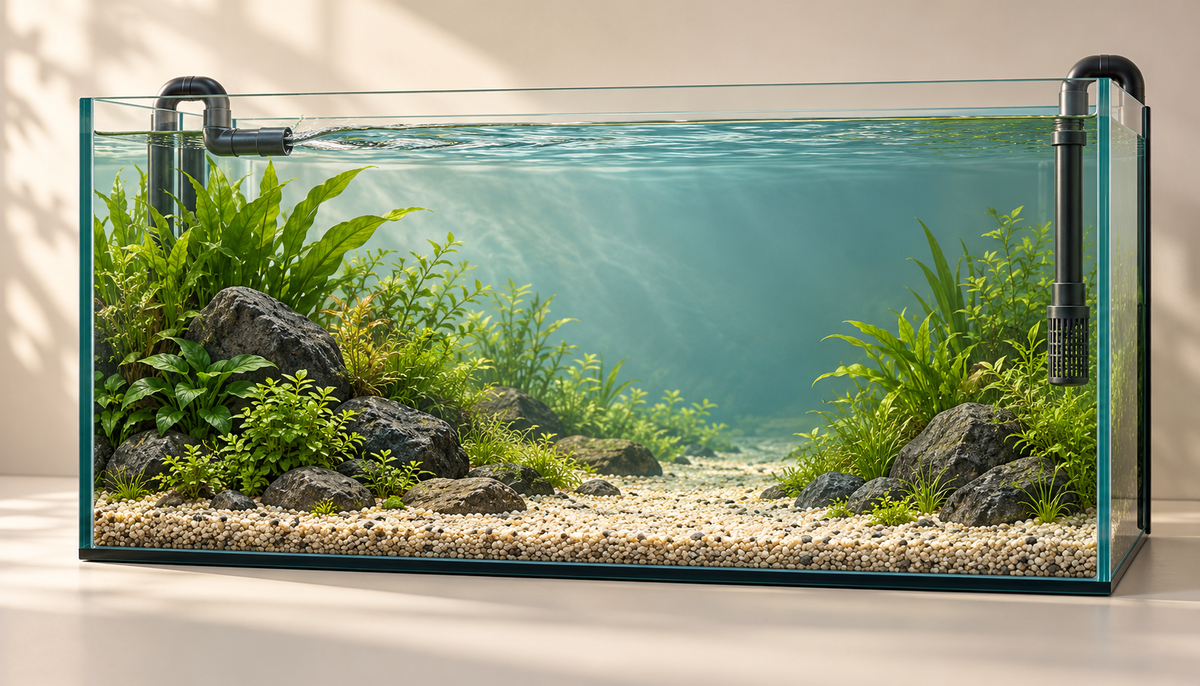

Separate the intake from the return
The intake draws aquarium water into the filter. The return or outlet sends filtered water back. A spray bar is one type of outlet; its holes spread the returning water instead of concentrating it into one jet.
Before moving anything, identify both connections on the exact model. Check its operating water level, mounting position, hose route and clearance requirements. Safely isolate electrical equipment as the manual requires before putting hands in the water or adjusting submerged parts. Restore and check normal operation afterwards; never run the pump dry.
Where should the filter outlet point?
With an adjustable return, begin with the manufacturer's recommended position. Then look at whether its direction makes sense for the tank's open water and hardscape. A nozzle aimed straight into a nearby solid decoration may not distribute water as intended.
Aqueon's return-system guide distinguishes a concentrated directional outlet from a spray bar that distributes flow across a wider area. Its adjustable returns can direct water towards the surface or other areas. This is a useful comparison of outlet types, not permission to modify another brand's fittings.
Try a small, permitted direction adjustment before buying a stronger pump. Look for useful movement beyond the outlet, without continually lifting substrate or pushing fish out of their chosen resting areas. If fish struggle with the current, use our strong filter-flow checklist rather than switching filtration off for the night.
Should a spray bar sit above or below the water?
Follow the normal operating position specified for your spray bar and filter. Where adjustment is permitted, check the result at the correct water level: surface movement, splash, noise and the direction of each stream. Rotating a bar can change where its water goes without changing the pump setting.
A horizontal bar on the rear glass and one mounted on a side panel create different patterns. Aqueon's guide describes side mounting as an option for directing water along an aquarium's length. That does not make side mounting right for every tank, especially where a lid, brace or fixed pipework limits access.
Do not bury the return deeper solely to silence splashing without checking the surface afterwards. Equally, do not assume the outlet position used during priming is its everyday position. Consult the exact instructions and our fish tank water-level guide.
Where should the intake go?
Keep the intake accessible and clear of substrate, leaves and decorations, with the clearance its manufacturer requires. Do not hide the strainer inside dense planting or rest it on the gravel. Keep the intended guard fitted; for small livestock, check suitable intake protection rather than assuming every strainer is fry-safe.
A canister intake should not pull in a stream of air bubbles. Fluval's FX FAQ, for example, specifically tells owners to keep the intake away from airstones and other bubble sources. The same FAQ contains model-specific connection and hose checks. Use those instructions for the appropriate equipment, not as universal measurements for other filters.
If adding an intake sponge, verify compatibility and make it easy to inspect. A protective accessory that becomes clogged can change the flow you were trying to improve.
Same side or opposite ends?
Treat this as a layout question, not a rule to copy from a photograph. Note where your return sends water, what obstructs that route, and where debris repeatedly settles. Opposite ends may be practical in one tank; another may have both pipes together because of its cabinet and lid. Neither arrangement proves good circulation by itself.
Take a front-view photograph and mark the intake, return, largest decorations and recurring waste patches. This gives you a specific problem to work on. Move only an adjustable component within its approved range; do not alter a fixed overflow or drill a spray bar to experiment.
A simple circulation check after adjustment
- Record the starting point. Note the waterline and outlet setting, and take a short video before changing anything.
- Observe several areas. Watch surface movement and flexible plant leaves. Do not add dye, extra food or clouds of debris as a flow test.
- Watch normal feeding and resting. Check that fish can reach their food and use quieter areas, not just swim through the strongest stream.
- Compare at the next routine clean. A recurring waste patch can help identify an area to review, but it does not prove low oxygen. Circulation also does not replace siphoning and water changes.
- Recheck equipment. Confirm secure fittings, steady return flow and no leaks or persistent air bursts after restarting.
Change one thing at a time so the comparison means something. If output has declined everywhere rather than just missing a corner, start with our weak filter-flow troubleshooting guide.
Water movement is not a water-quality test
Clear water and visible ripples do not prove that filtration is coping. OATA's water-quality guidance explains that fish and biological filtration need oxygen, while harmful pollution may be invisible. Keep up routine testing. If fish gasp or behave unusually, check temperature and water quality promptly instead of treating outlet placement as the only possible cause.
Planning a new fish tank in the UAE?
When comparing fish tanks and aquariums, include pipe access, lid openings and the final hardscape in your plan—not only the tank's capacity. Record the filter model and tank dimensions in mm before choosing compatible fittings from the current equipment range. A layout you can inspect and maintain is more useful than neatly hidden pipes you cannot reach.
For the separate question of what belongs inside the filter, read our filter-media order guide. Pipe placement and media arrangement need to work together, but they are different setup decisions.
